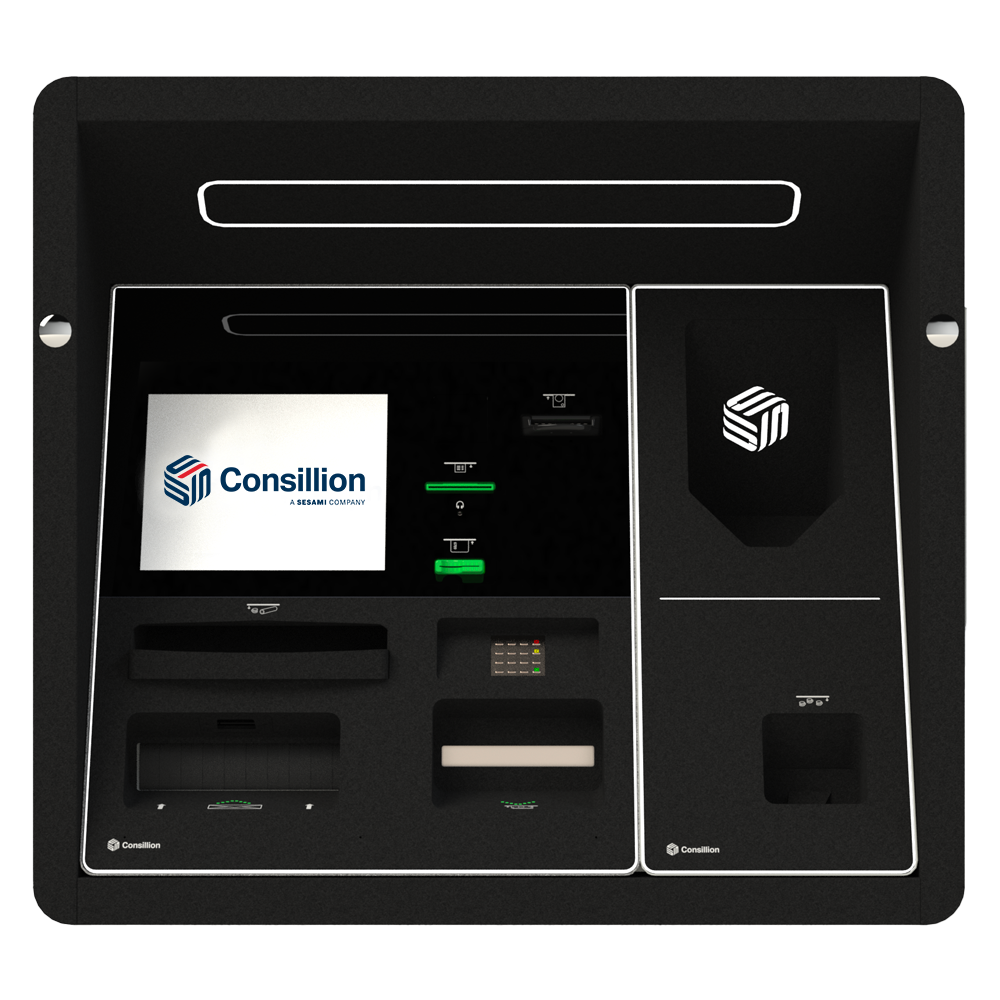

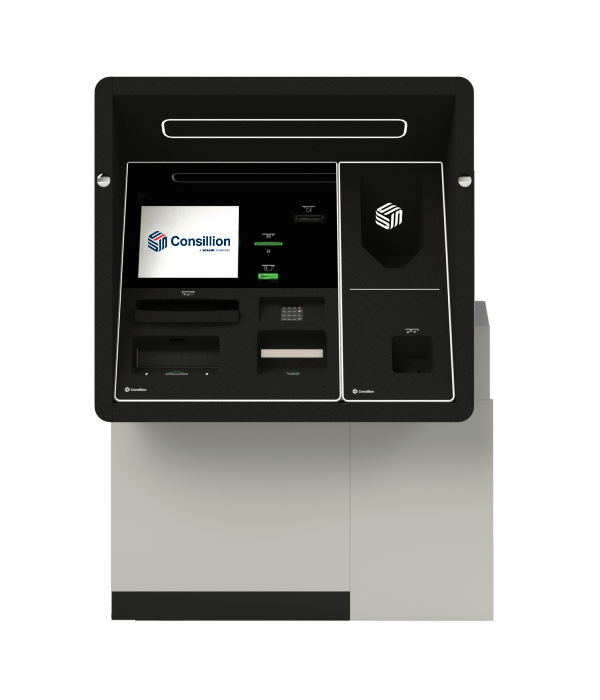

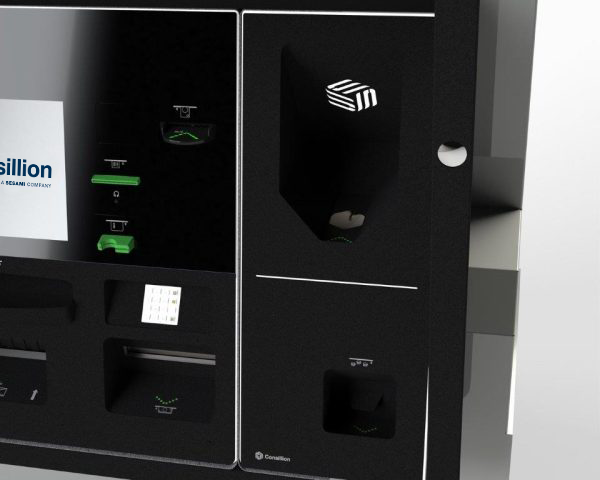

XDCi-N + Sidecar

Coin Sidecar

The coin sidecar is a coin-in upgrade module designed to allow your existing self service hardware to accept large deposits of loose, unsorted coins as an account deposit (online version) or a redeemable voucher. The optional coin-out functionality allows the dispense of loose coins, even in small denominations. This way, customers can withdraw cash from their bank account both notes and coins and access any transaction where dispensing change is required at the self-service wall.


  • Add coin processing functionality to any existing self-service hardware without incurring large refurbishment costs
  • Offers coin deposit capability whilst offering an attractive ROI within a lower volume environment
  • Allows the migration of all cash handling functions to the self service wall and adds coin-in / coin-out functionality to decentralised locations and 24-hour hubs
  • Proven technology combined with clever, space-saving design only adds from a minimum of 250mm to a maximum of 450mm width to your existing solution
  • Comes with full XFS layer to easily integrate in ATM software environment
Sidecar Dimensions

490mm (W) x 783mm (D) x 1600mm (H)

Coin Acceptance

Bulk load conveyor, bulk feed head

Coin Dispense

8 hoppers of approx. 2,000 loose coins each

Coin Mechanism

Self-cleaning and calibrating coin head mechanism with 5th generation sensor technology (16 parameters of detection)

Processing Speed

Up to 1,100 coins per minute

Coin Vault Capacity

65 Litres = approx. 32,500 coins

User Guidance

Illuminated reject coin tray


3-point locking on upper door; 5mm secure cabinet with 2 x 7 lever locks

Power Supply

Internal PSU fitted
